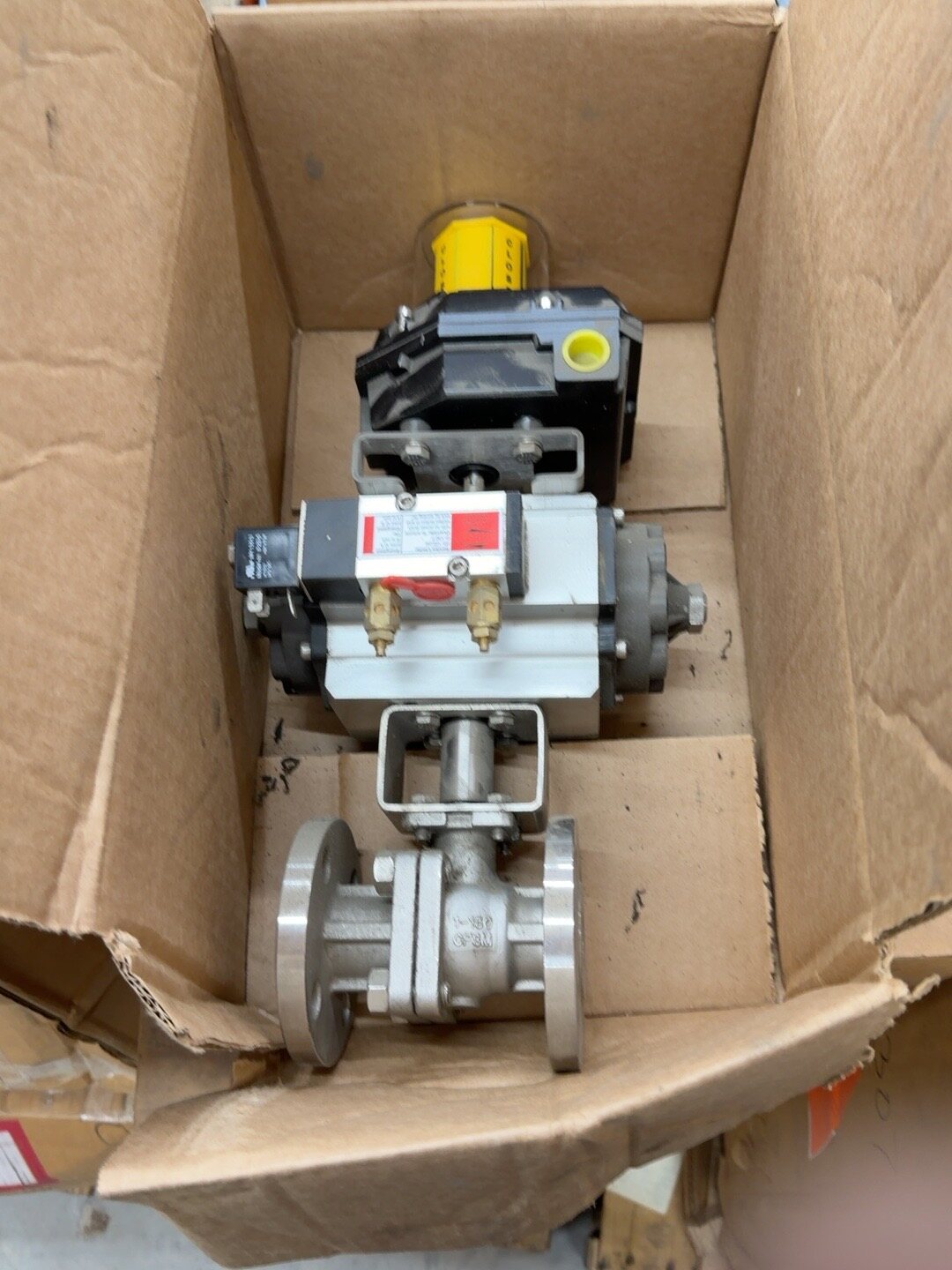

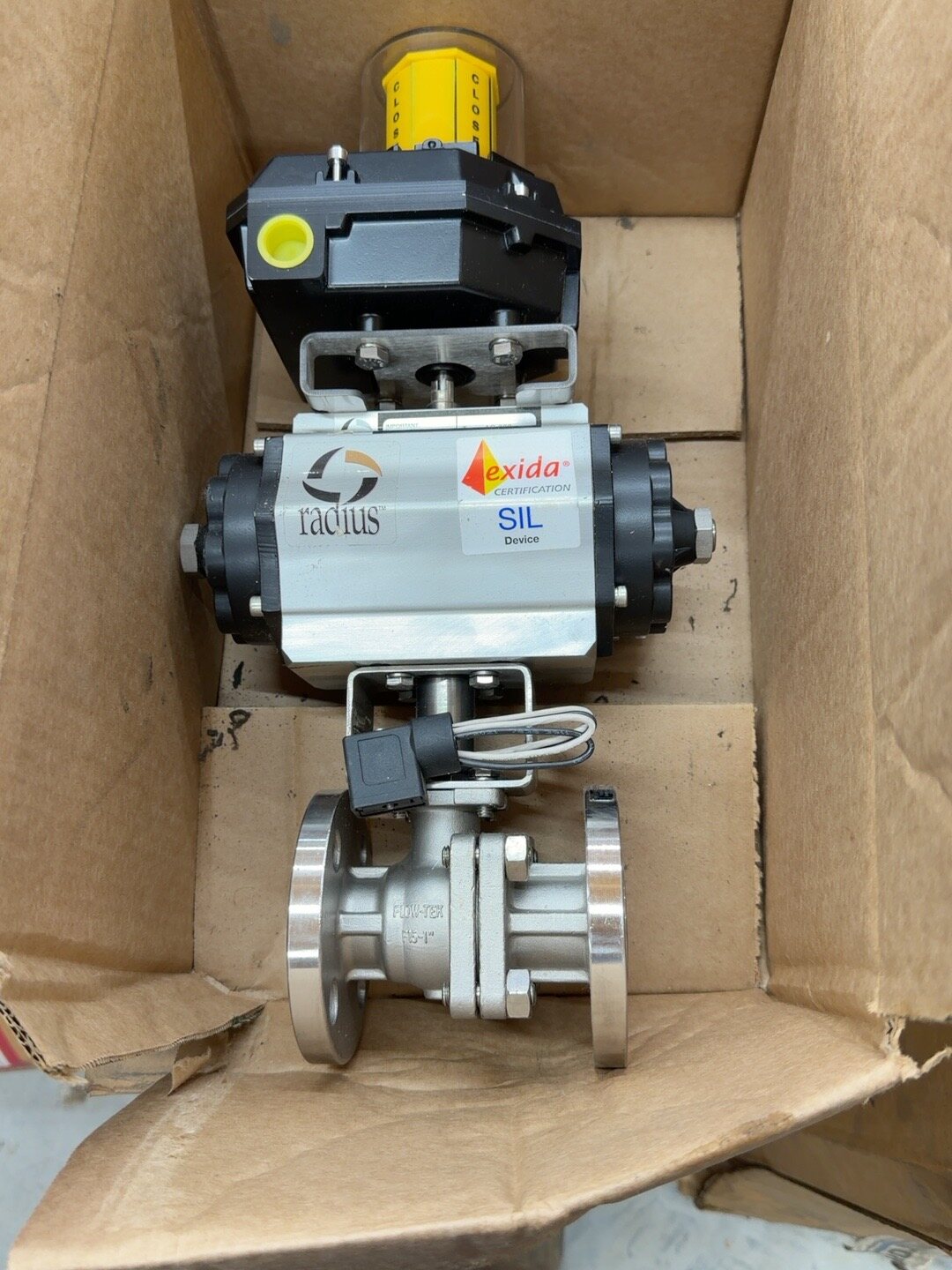

Flow-Tek Pneumatically actuated stainless flanged ball-valve assembly, 1 in
Flow-Tek F15-1; Radius AS-008 / Type 008 N-10
$595
Shipping or freight and applicable sales tax are additional.
Purchases are currently completed by invoice. Buyer-paid shipping is available. Appointment-only pickup and reasonable offers are available. Inquire if additional info is needed.
Direct purchases are subject to our Terms of Sale. See our Privacy Policy.
Delivery, sales tax and final invoice
Listed prices exclude shipping and delivery charges. Agreed shipping or freight charges will be shown on the final invoice before payment. Applicable sales tax is additional and will be shown separately on the final invoice.
Provide the complete delivery address and access requirements, or confirm local pickup, when requesting an invoice. If you claim a resale or other tax exemption, provide a valid exemption certificate for review before payment. A business purchase is not automatically tax-exempt.
Payment methods
Bank wire transfer is required for freight shipments, higher-value machinery and direct sales over $2,500. Credit or debit card is accepted through an authorized Copper Holler Surplus, LLC invoice for direct sales under $2,500, or by chip or tap at local pickup. Cash is accepted at appointment-only local pickup.
Marketplace purchases must be completed through the marketplace's required checkout. Items are released or shipped only after payment is confirmed. Checks, money orders, peer-to-peer payment apps and cryptocurrency are not accepted.
Condition
New old stock / unused surplus appearance in original project carton; valve and components show light shelf dust and storage marks; carton is heavily worn and lacks visible factory identification; untested; quantity one
Specifications

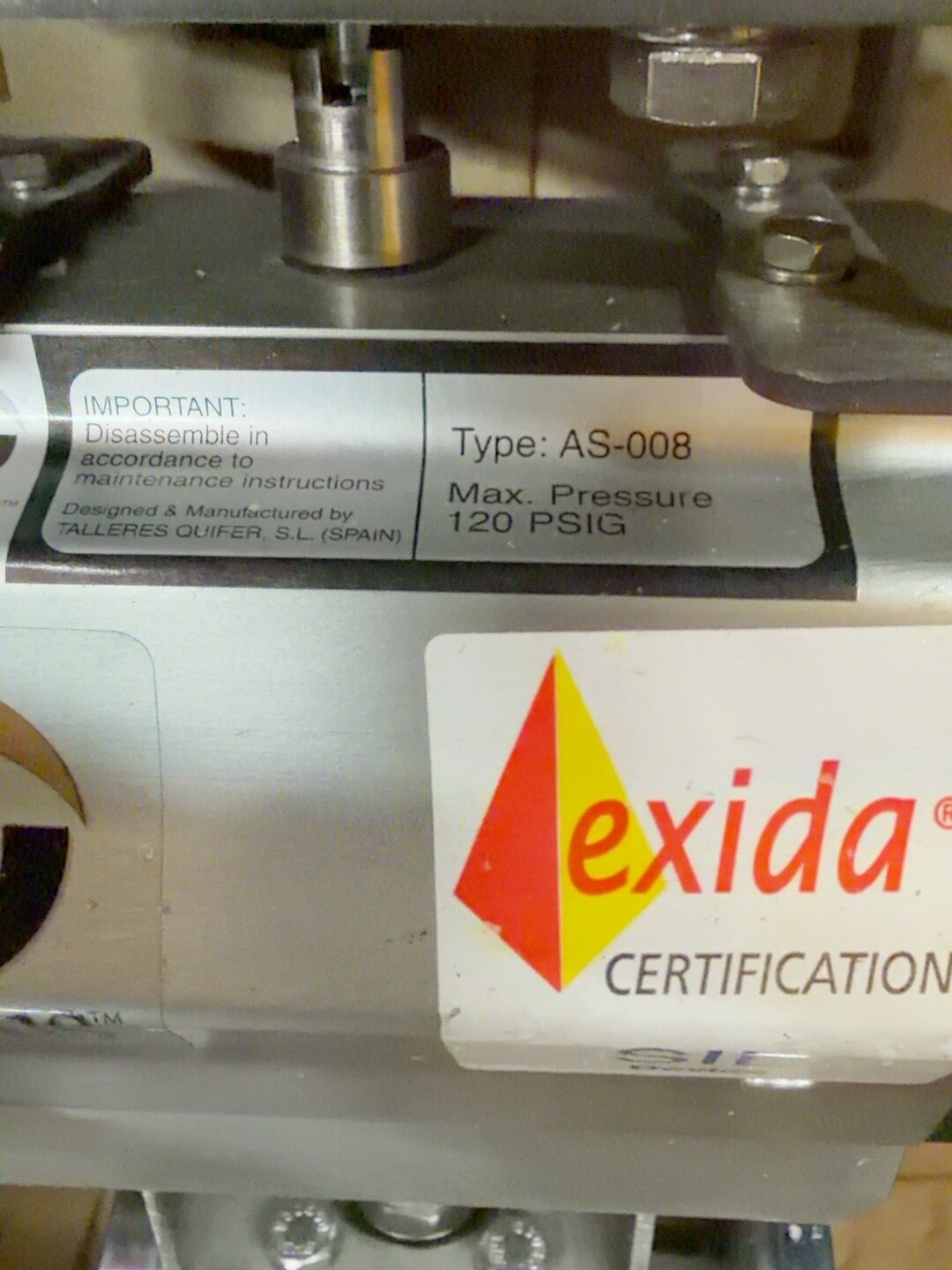

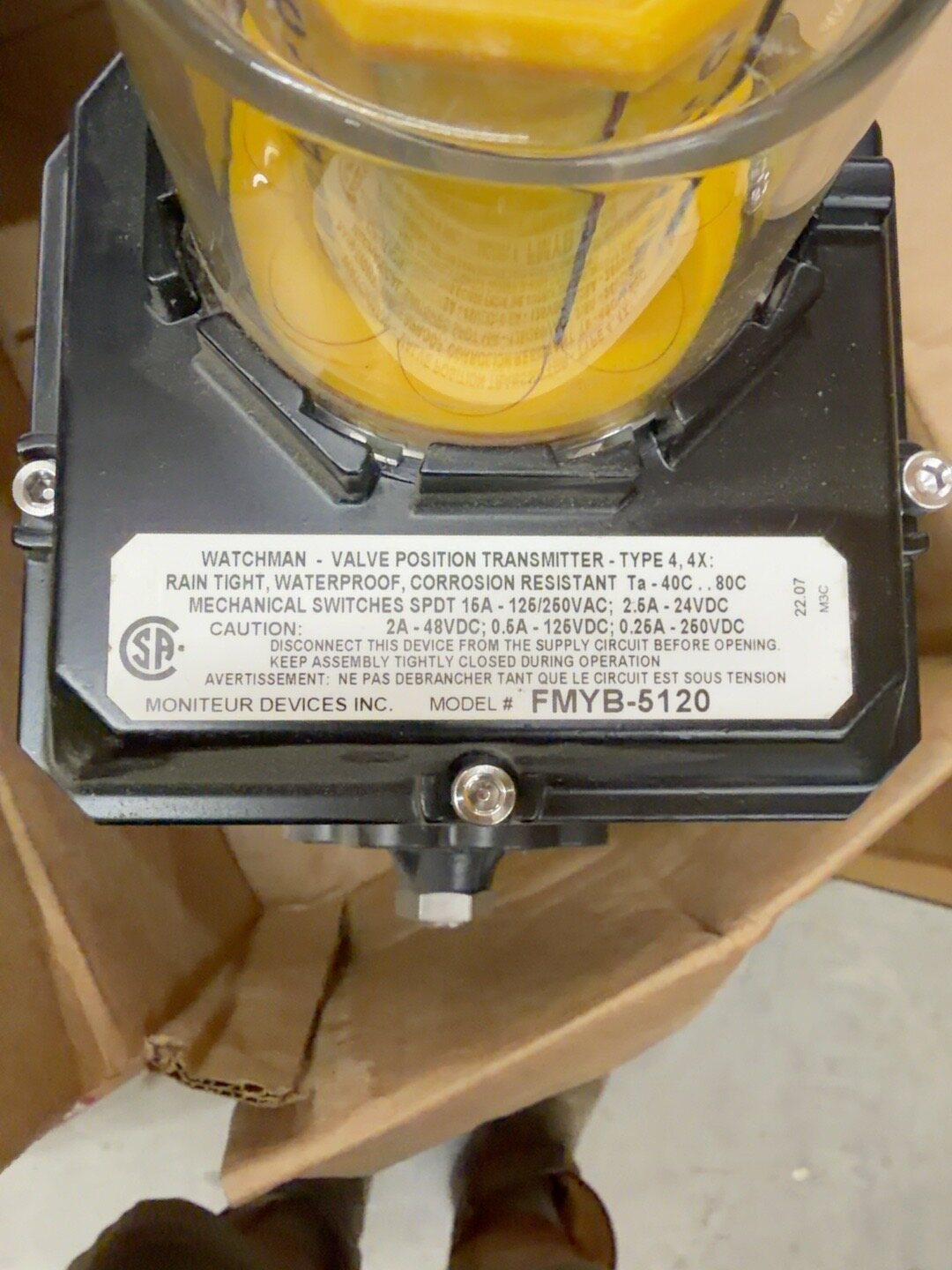

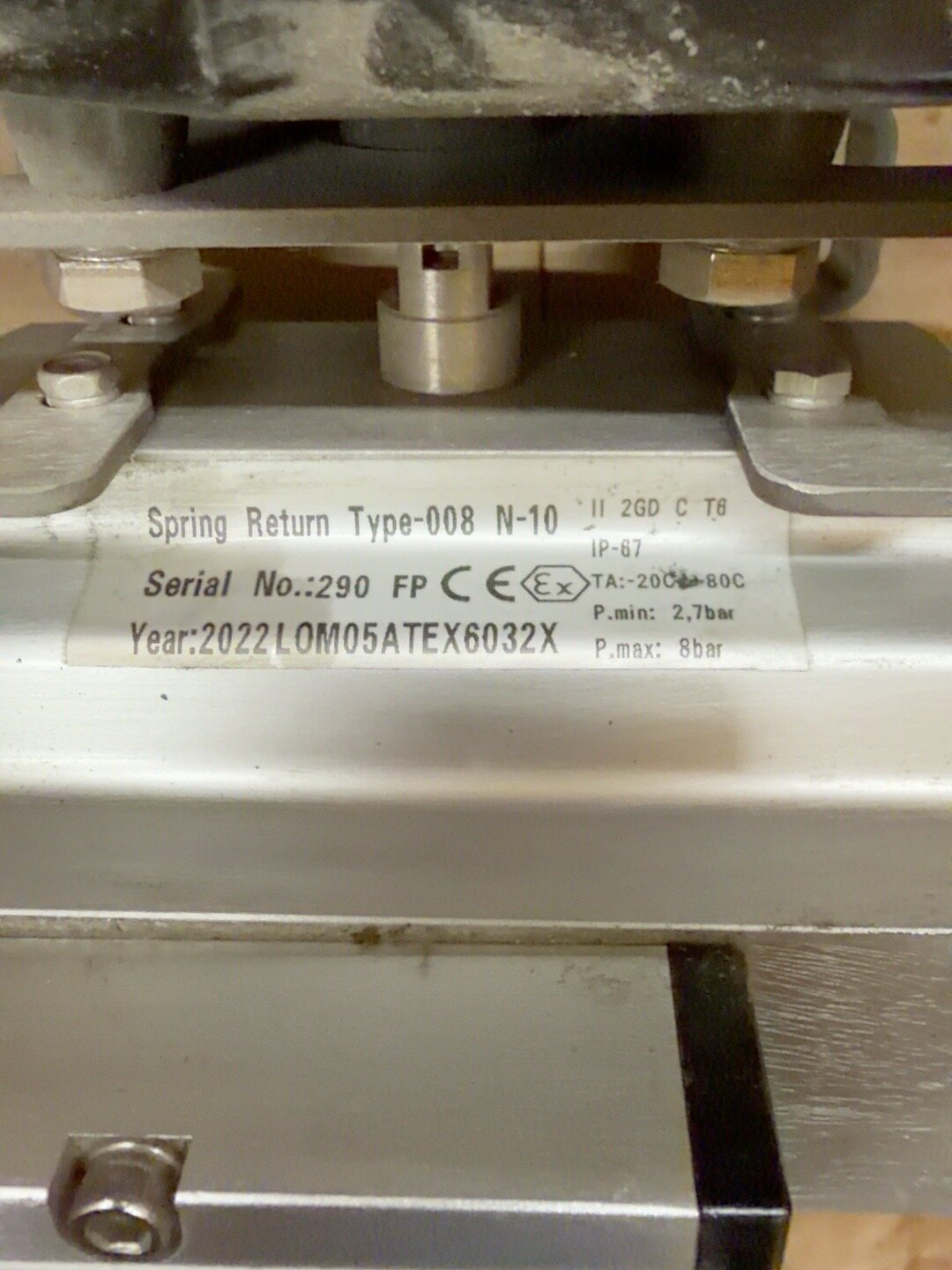

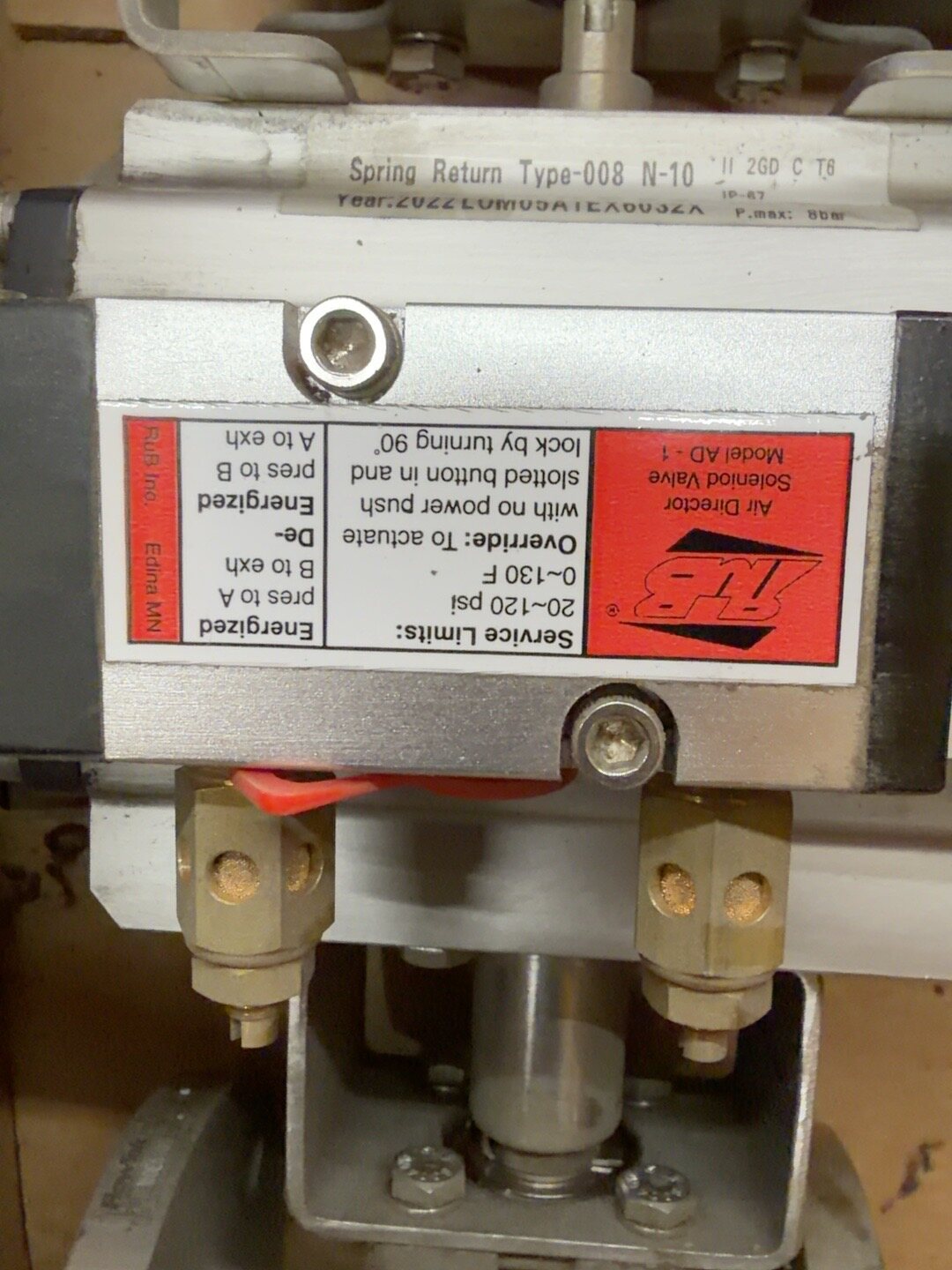

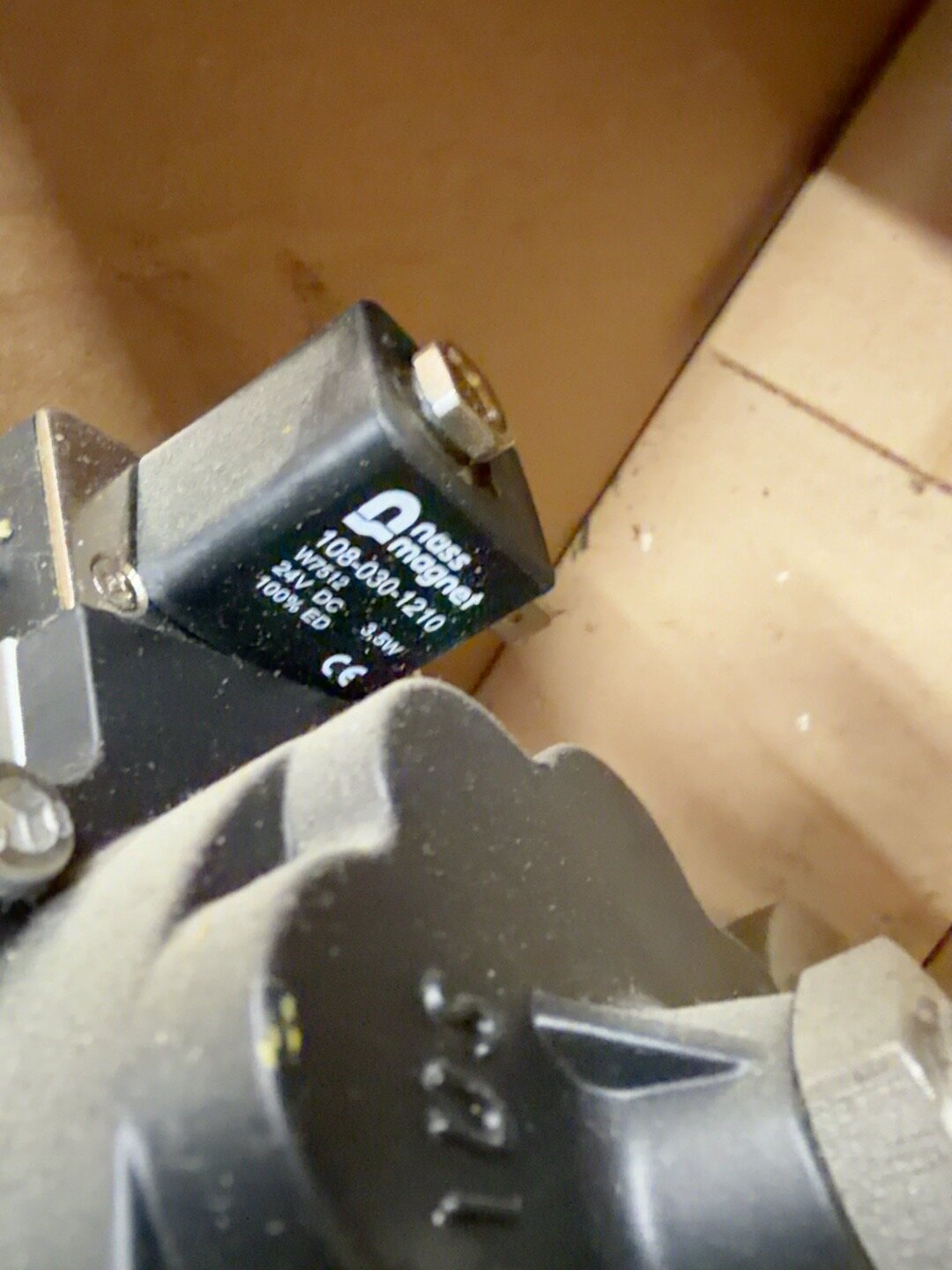

Complete quarter-turn automated isolation-valve package: 1-inch Flow-Tek F15 two-piece full-port stainless steel raised-face flanged ball valve, ASME Class 150; CF8M body and nominal 316 stainless ball/stem are consistent with published F15-1 specifications but the exact trim code is not visible. Radius AS-008 rack-and-pinion spring-return pneumatic actuator, 120 PSIG maximum; actuator plate also identifies Type 008 with N-10 spring configuration, IP67, ATEX II 2GD c T6, ambient -20 to 80 C, minimum air pressure 2.7 bar and maximum 8 bar. RuB Air Director AD-1 NAMUR solenoid valve with manual override, 20-120 PSI and 0-130 F service range; Master Magnetics coil 108-030-1210, 24 VDC, 100% ED. Moniteur Devices Watchman FMYB-5120 valve-position transmitter/limit-switch enclosure, NEMA Type 4/4X, with open/closed beacon and two SPDT mechanical switches rated 1 A at 125/250 VAC, 2.5 A at 24 VDC, 2 A at 48 VDC, 0.6 A at 125 VDC and 0.26 A at 250 VDC. Confirm fail position, actuator torque, valve seat/seal trim and switch operation before commissioning
Common industry descriptions
This item may also be described as automated ball valve, pneumatic flanged ball valve, 1 inch Class 150 isolation valve, spring-return valve package.
Testing available
Controlled pneumatic stroke, solenoid, position-switch and valve leak testing can be arranged through a qualified valve service provider at the prospective buyer's expense. Unless specific results are documented on this page, the item remains untested by Copper Holler Surplus, LLC. No powered, destructive, pressure or load testing will be performed without advance agreement.
