ITT Engineered Valves Pneumatically actuated hygienic diaphragm valve, 2 in Tri-Clamp
B116, 2 in; factory box code 2.0 FC TME EP
$1,495
Shipping or freight and applicable sales tax are additional.
Purchases are currently completed by invoice. Buyer-paid shipping is available. Appointment-only pickup and reasonable offers are available. Inquire if additional info is needed.
Direct purchases are subject to our Terms of Sale. See our Privacy Policy.
Delivery, sales tax and final invoice
Listed prices exclude shipping and delivery charges. Agreed shipping or freight charges will be shown on the final invoice before payment. Applicable sales tax is additional and will be shown separately on the final invoice.
Provide the complete delivery address and access requirements, or confirm local pickup, when requesting an invoice. If you claim a resale or other tax exemption, provide a valid exemption certificate for review before payment. A business purchase is not automatically tax-exempt.
Payment methods
Bank wire transfer is required for freight shipments, higher-value machinery and direct sales over $2,500. Credit or debit card is accepted through an authorized Copper Holler Surplus, LLC invoice for direct sales under $2,500, or by chip or tap at local pickup. Cash is accepted at appointment-only local pickup.
Marketplace purchases must be completed through the marketplace's required checkout. Items are released or shipped only after payment is confirmed. Checks, money orders, peer-to-peer payment apps and cryptocurrency are not accepted.
Condition

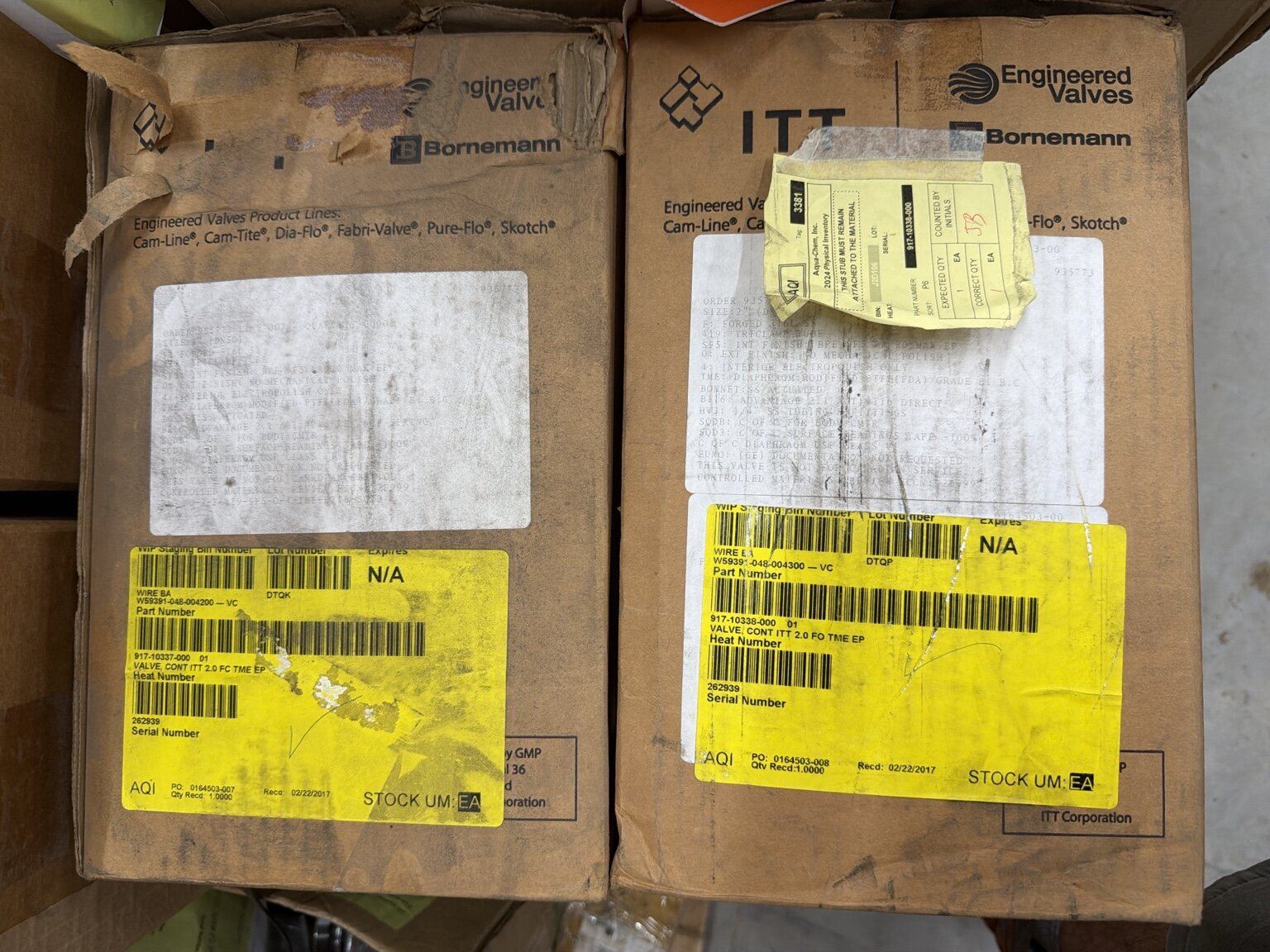

New old stock in matching original individual ITT factory boxes; appear unused with protective sanitary caps; boxes show age, staining and storage wear; light dust/storage marks on valves; untested; two distinct assemblies
Specifications

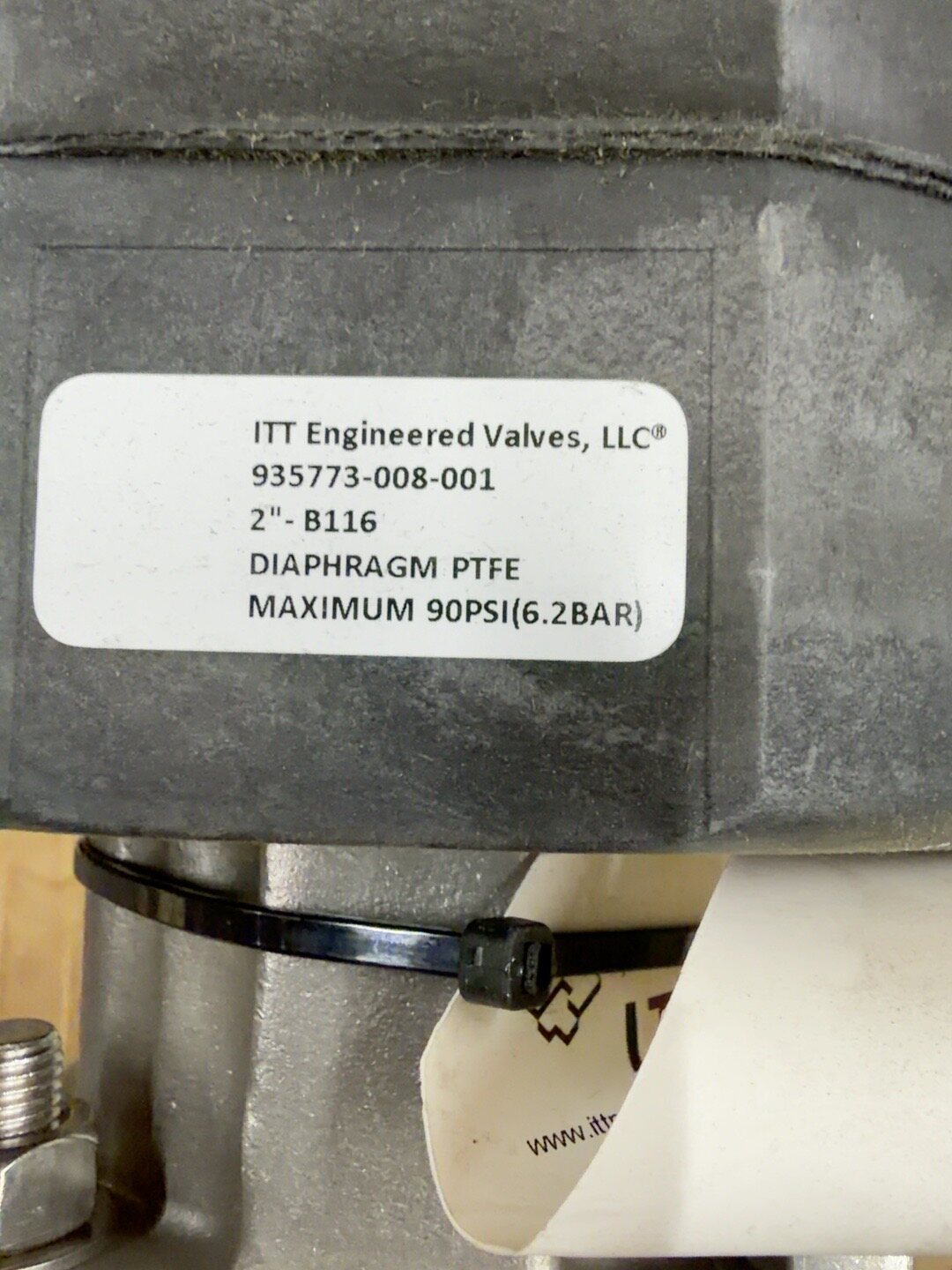

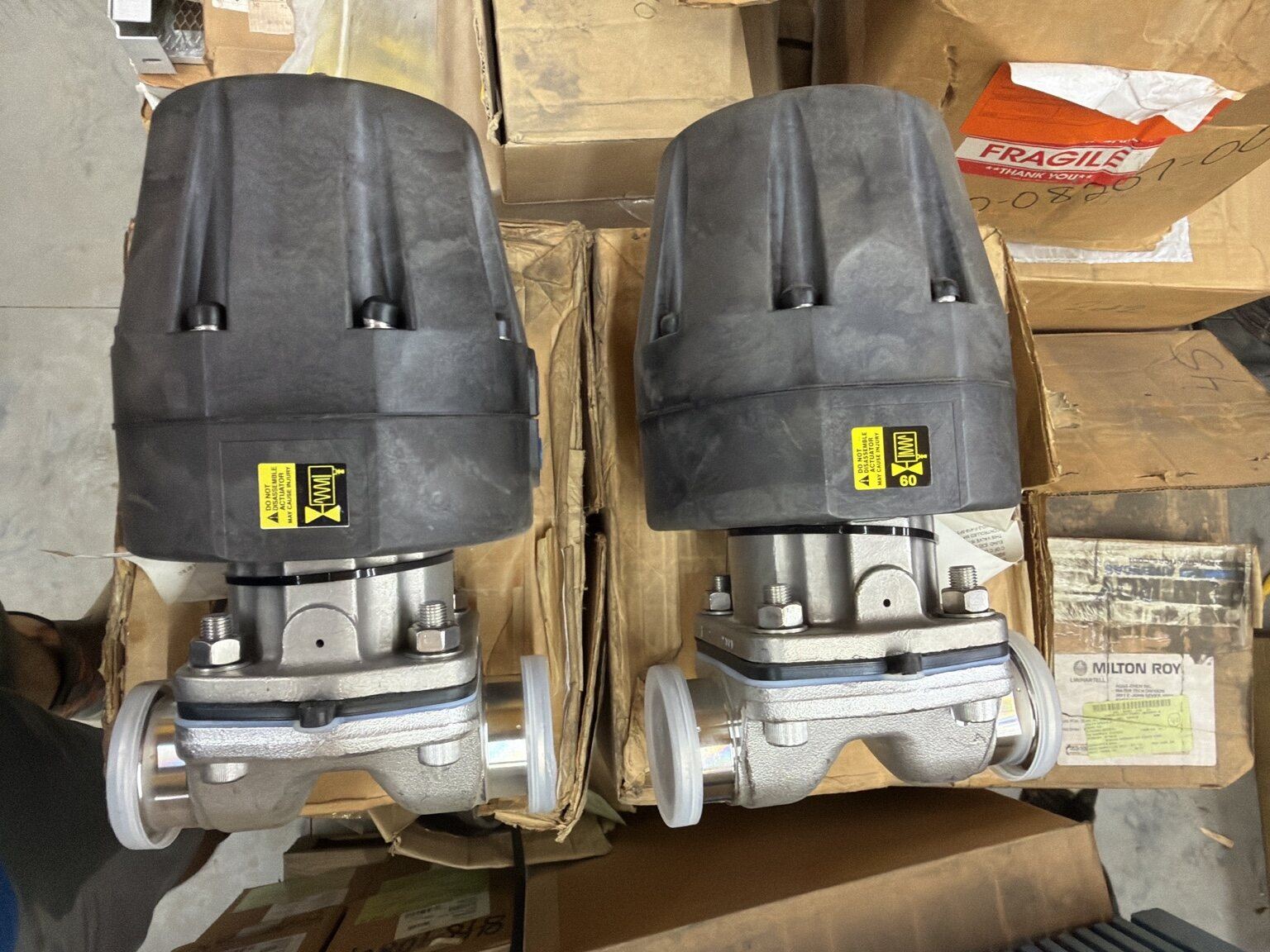

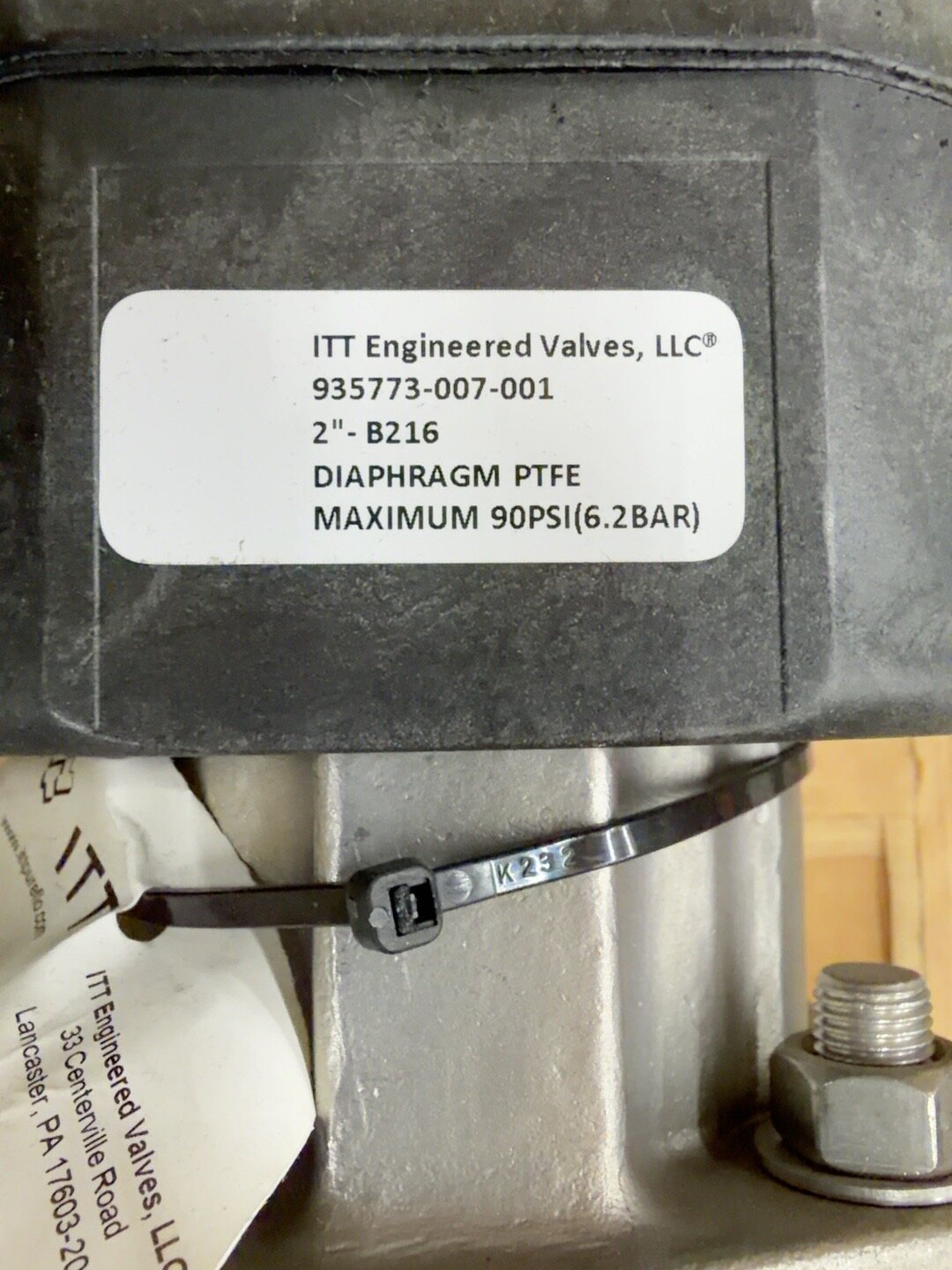

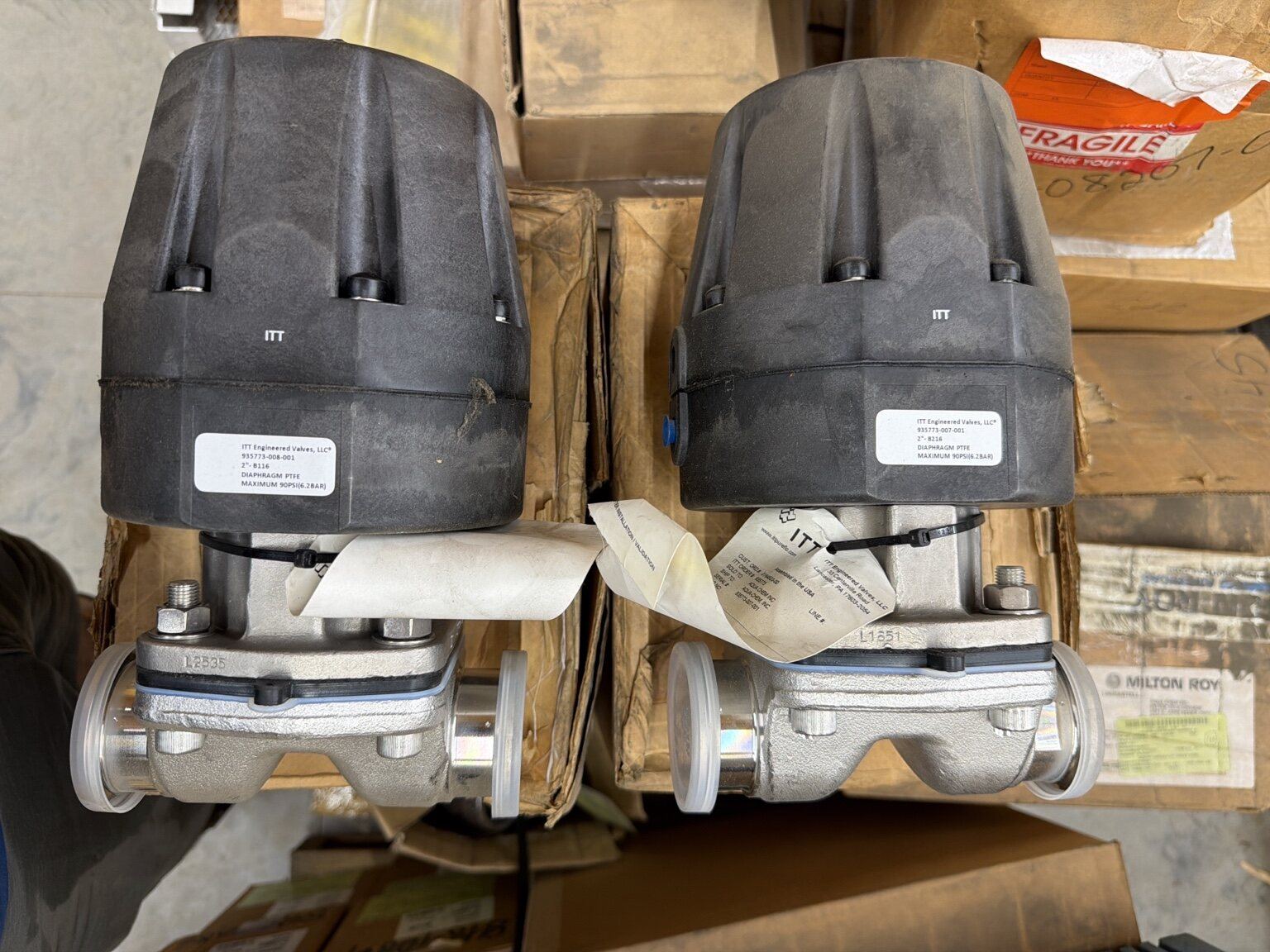

Complete two-way pneumatically actuated diaphragm-valve assemblies; 2-inch sanitary Tri-Clamp inlet/outlet; stainless valve bodies; molded thermoplastic spring-return B116 pneumatic actuators; TME modified-PTFE diaphragms; maximum process pressure 90 PSI / 6.2 bar. Factory box coding reads 'VALVE, CONT ITT 2.0 FC TME EP'; FC commonly denotes fail-closed and EP commonly denotes electropolished, but both meanings, body alloy, surface-finish value, diaphragm backing, actuator pilot-pressure range and certificate package should be confirmed from ITT build records before advertising them as certified specifications
Common industry descriptions
This item may also be described as sanitary diaphragm valve, 2 inch Tri-Clamp valve, fail-closed pneumatic valve, Pure-Flo hygienic valve.
Testing available
Controlled pneumatic stroke, seat-leak and external-leak testing can be arranged through a qualified valve service provider at the prospective buyer's expense. Unless specific results are documented on this page, the item remains untested by Copper Holler Surplus, LLC. No powered, destructive, pressure or load testing will be performed without advance agreement.
