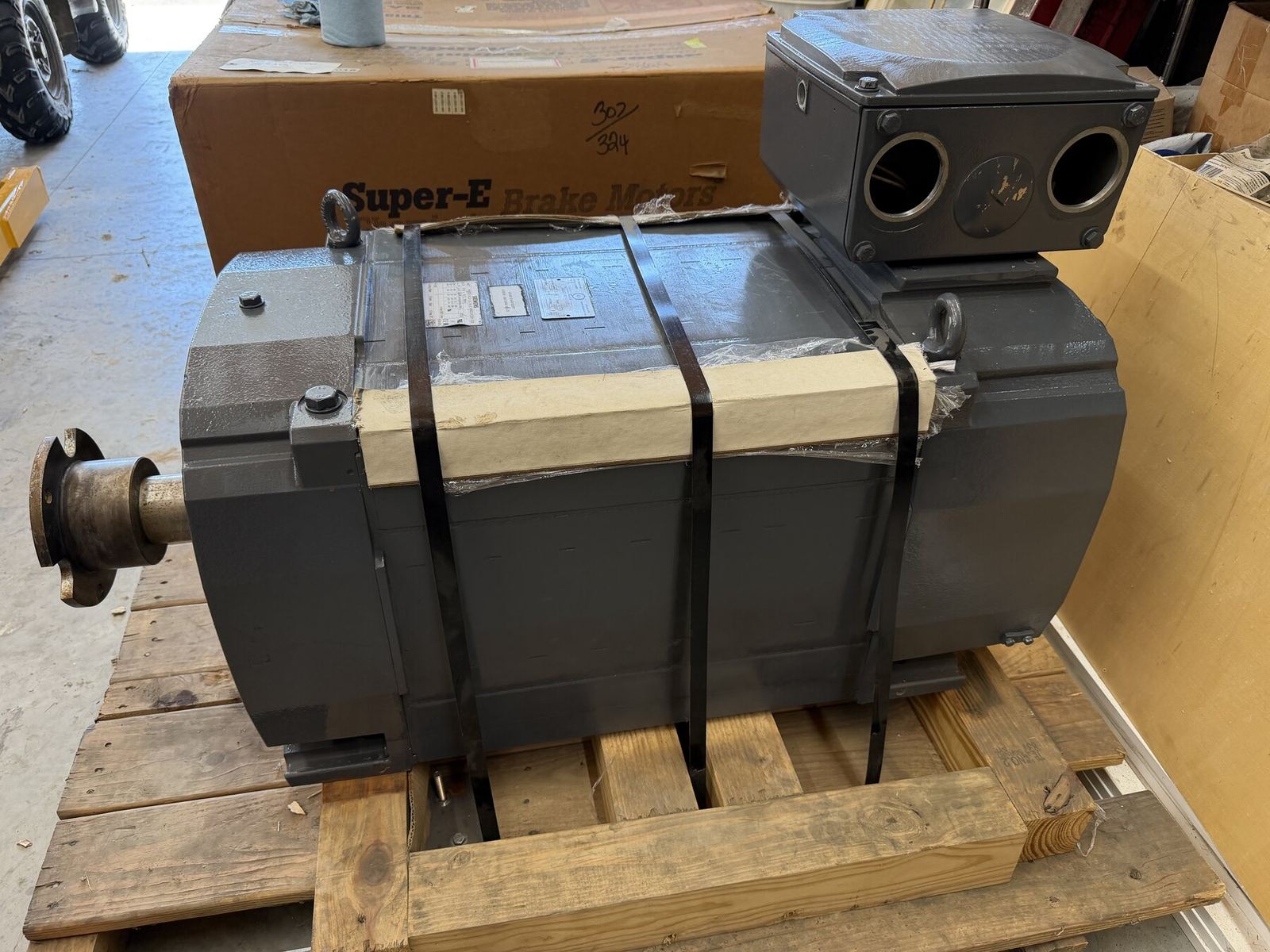

Siemens 1PH8228 226/237 kW water-cooled main-drive / spindle motor
1PH8228-1AL20-1LA2
$39,950
Purchases are currently completed by invoice. Standard delivery is included at the full asking price as described below. Appointment-only pickup and reasonable offers are available. Inquire if additional info is needed.
Direct purchases are subject to our Terms of Sale. See our Privacy Policy.
Delivery, sales tax and final invoice
At the full asking price, seller-selected standard shipping or commercial freight delivery within the contiguous United States is included. Freight delivery requires a commercial address with a loading dock or forklift. Residential delivery, liftgate service, limited-access delivery, expedited service, special handling and testing are additional. Shipping terms for an accepted offer below asking price will be confirmed before purchase. Applicable sales tax is additional and will be shown separately on the final invoice.
Provide the complete delivery address and access requirements, or confirm local pickup, when requesting an invoice. If you claim a resale or other tax exemption, provide a valid exemption certificate for review before payment. A business purchase is not automatically tax-exempt.
Payment methods
Payment for IND-0006 is by bank wire transfer only.
Marketplace purchases must be completed through the marketplace's required checkout. Items are released or shipped only after payment is confirmed. Checks, money orders, peer-to-peer payment apps and cryptocurrency are not accepted.
Condition

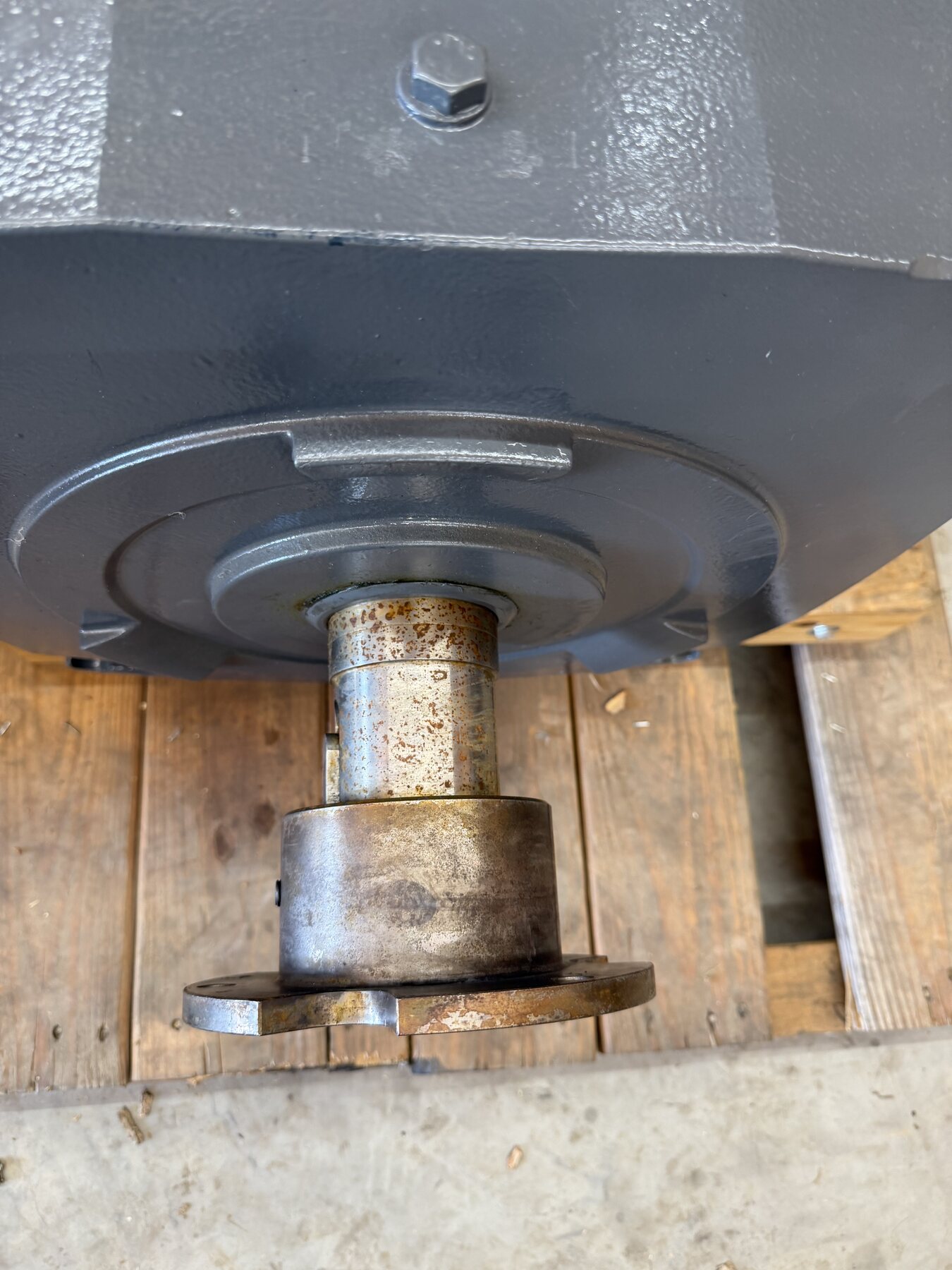

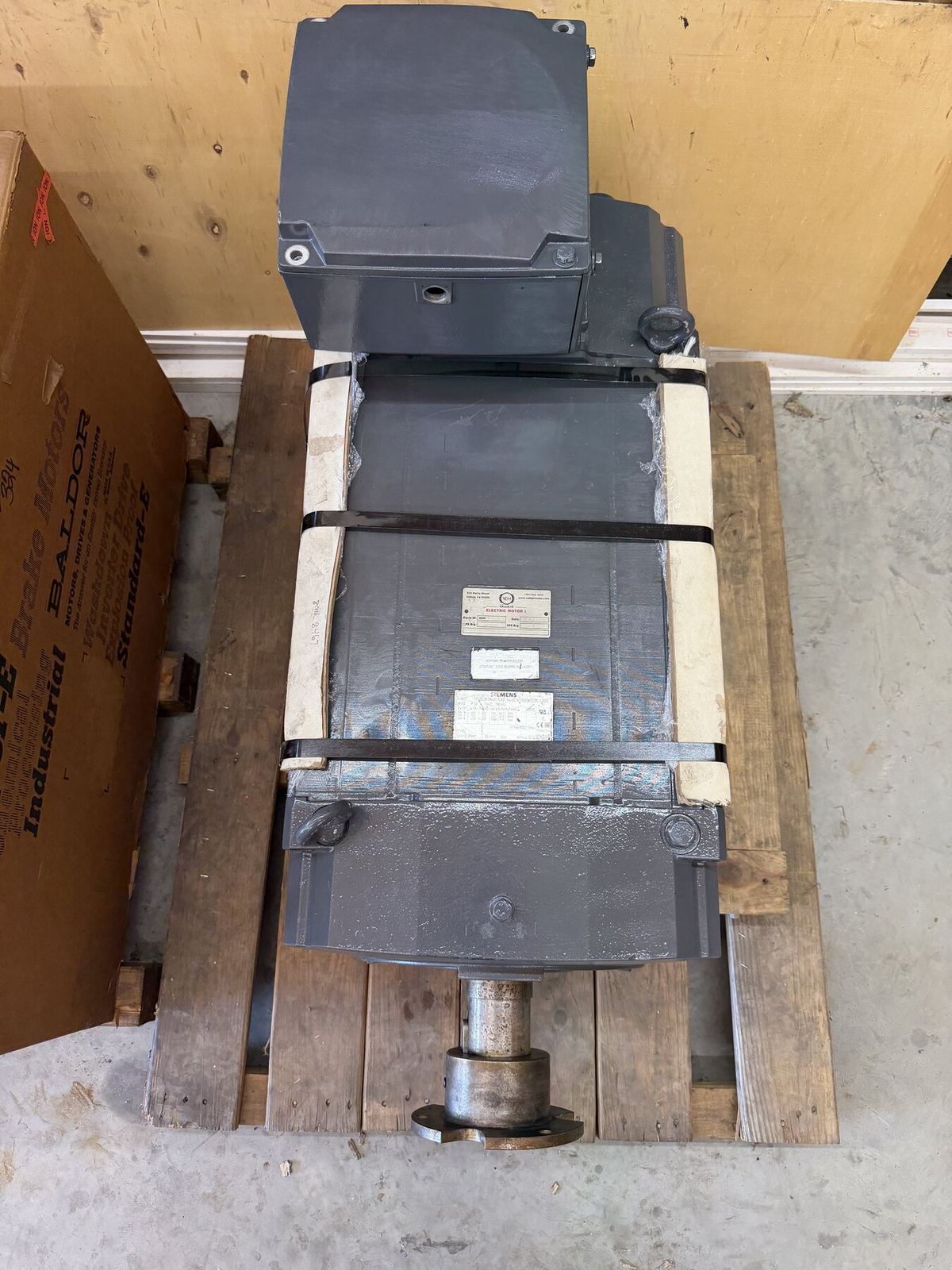

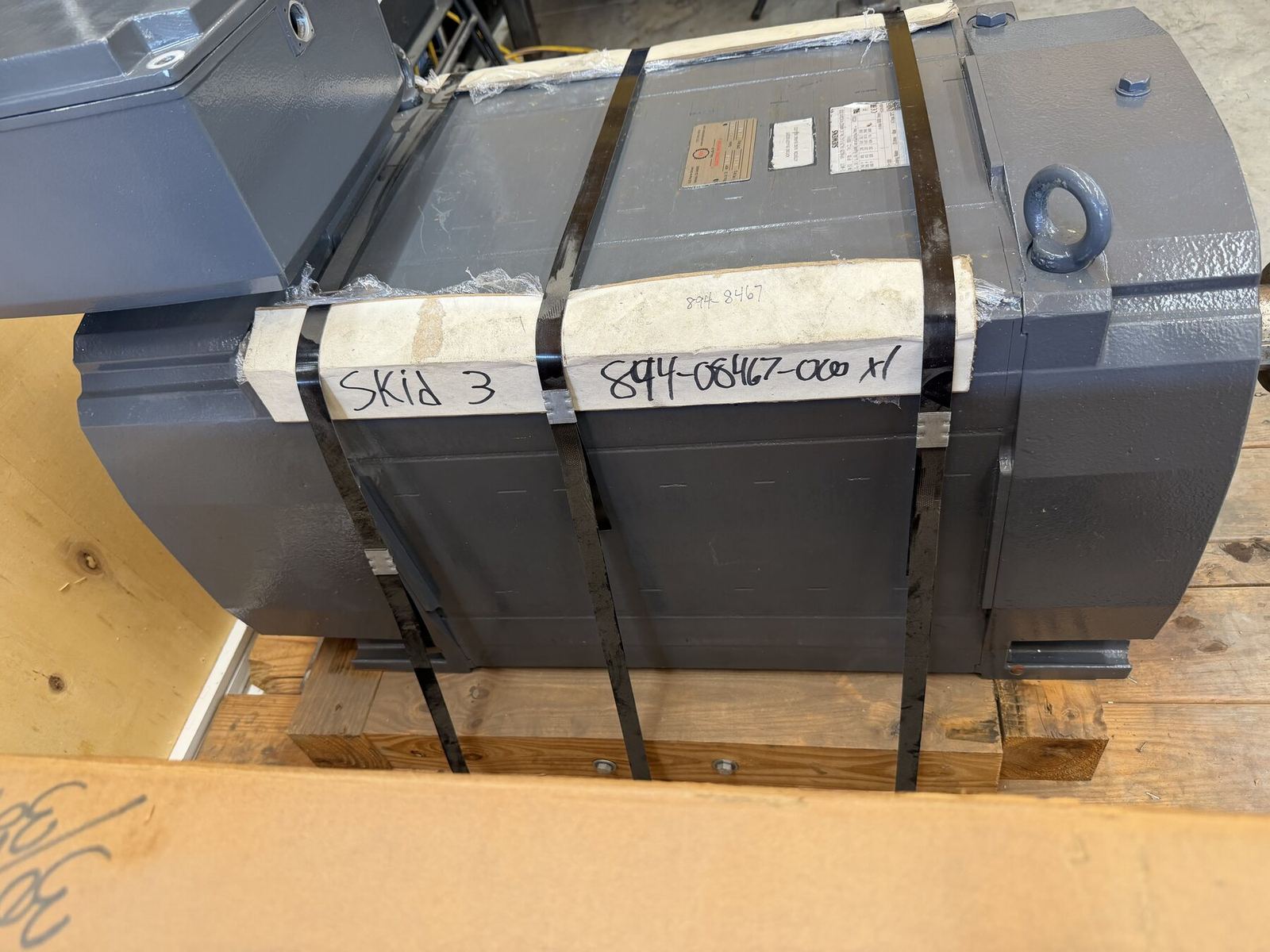

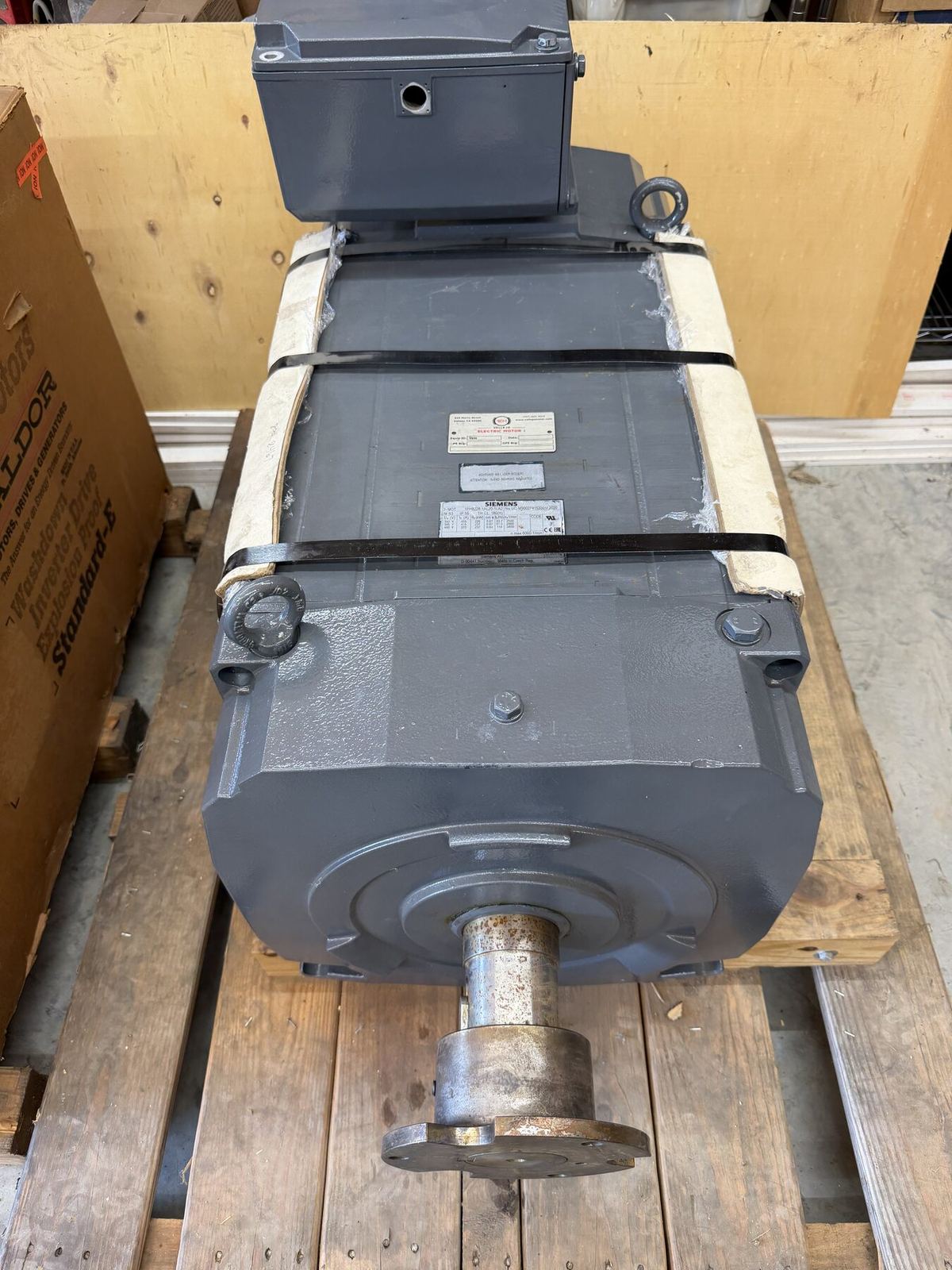

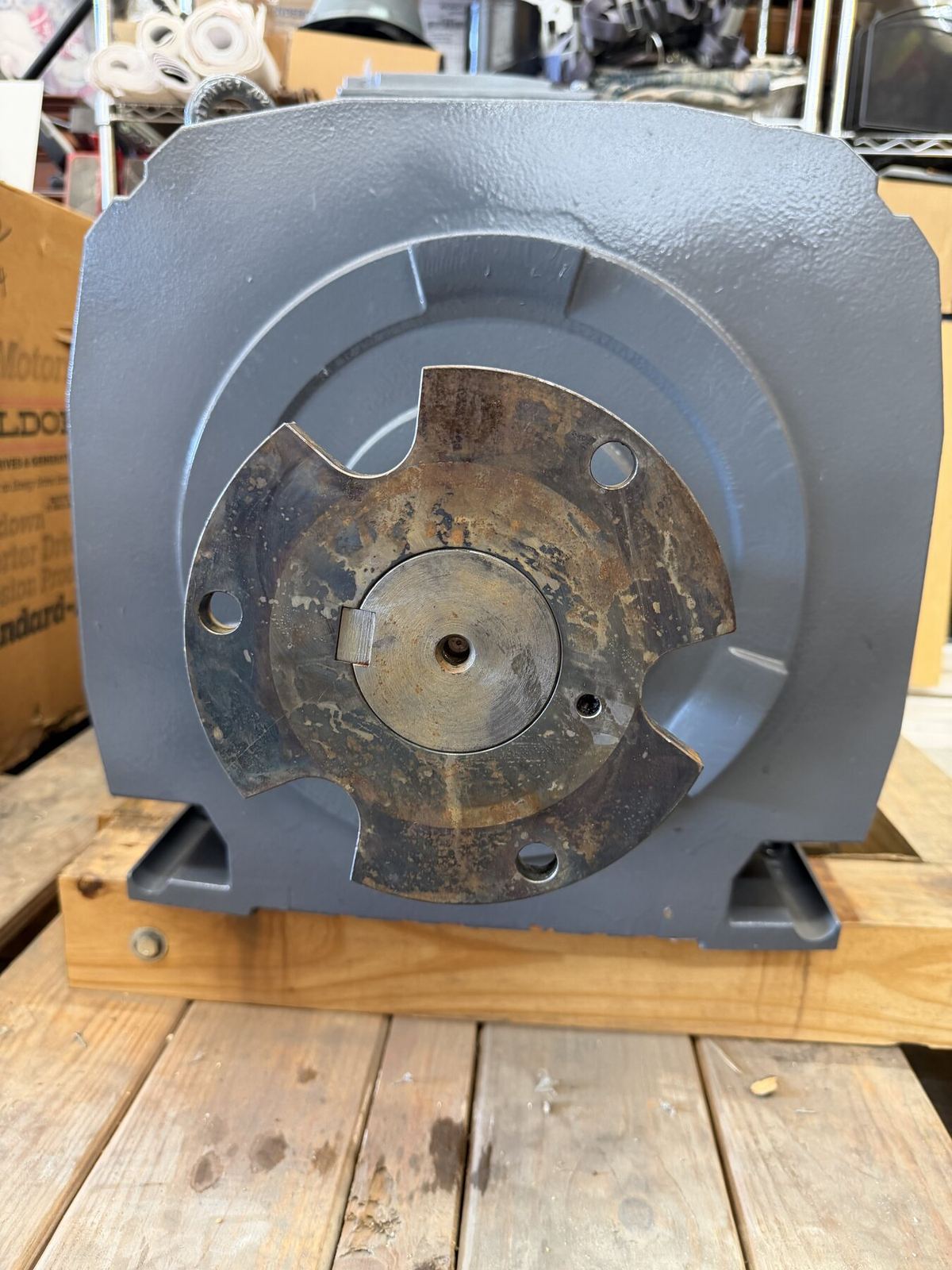

Industrial-surplus Siemens water-cooled main-drive/spindle motor manufactured in 2020. The motor remains secured to substantial wooden shipping supports. No obvious evidence of subsequent field installation is visible, but its service history after the rebuild cannot be independently confirmed. Current operational condition is unverified. Visible surface oxidation is present on the shaft, coupling and mounting face; see photographs.
Specifications

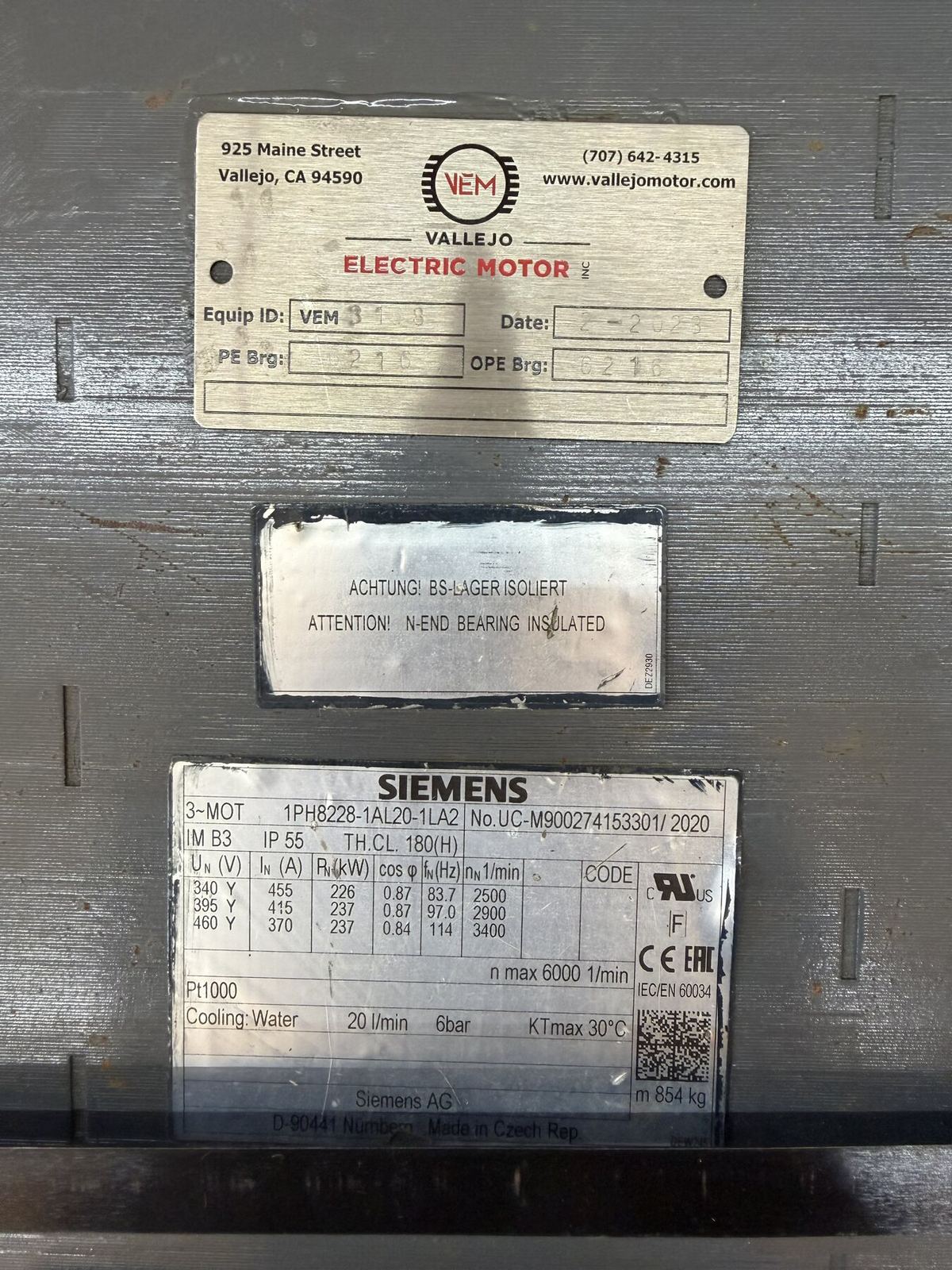

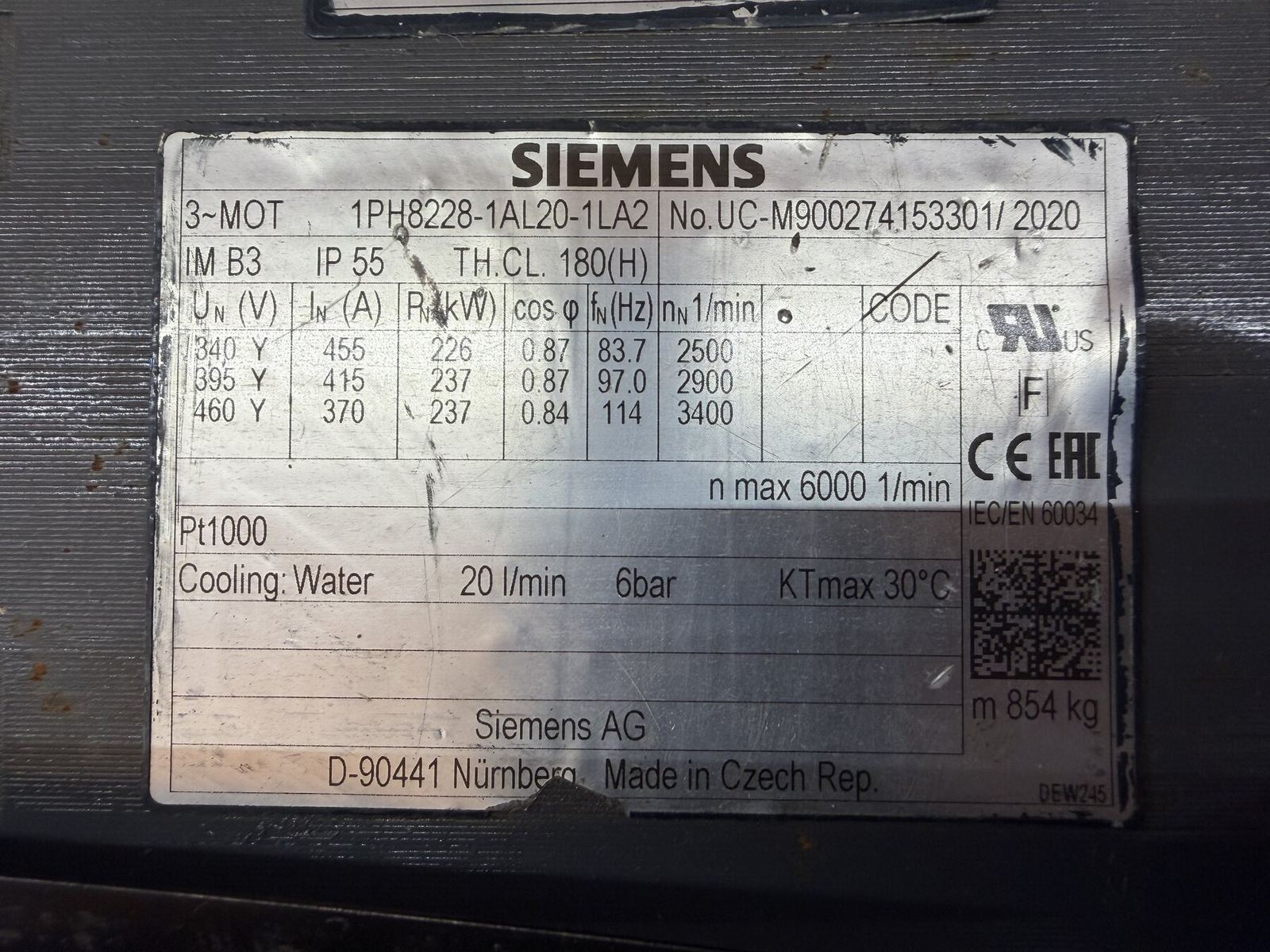

Siemens 3-phase water-cooled main-drive/spindle motor; model 1PH8228-1AL20-1LA2; No. UC-M900274153301/2020; IM B3; IP55; thermal class 180(H); 340 V Y / 455 A / 226 kW / 83.7 Hz / 2500 rpm; 395 V Y / 415 A / 237 kW / 97.0 Hz / 2900 rpm; 460 V Y / 370 A / 237 kW / 114 Hz / 3400 rpm; maximum 6000 rpm; PT1000; water cooling 20 L/min at 6 bar; maximum coolant temperature 30 C; nameplate motor mass 854 kg (approximately 1,883 lb).
Common industry descriptions
This item may also be described as water-cooled spindle motor, main-drive motor, Siemens 1PH8 motor, 226 kW industrial motor, 237 kW machine-tool motor.
Documented service statement

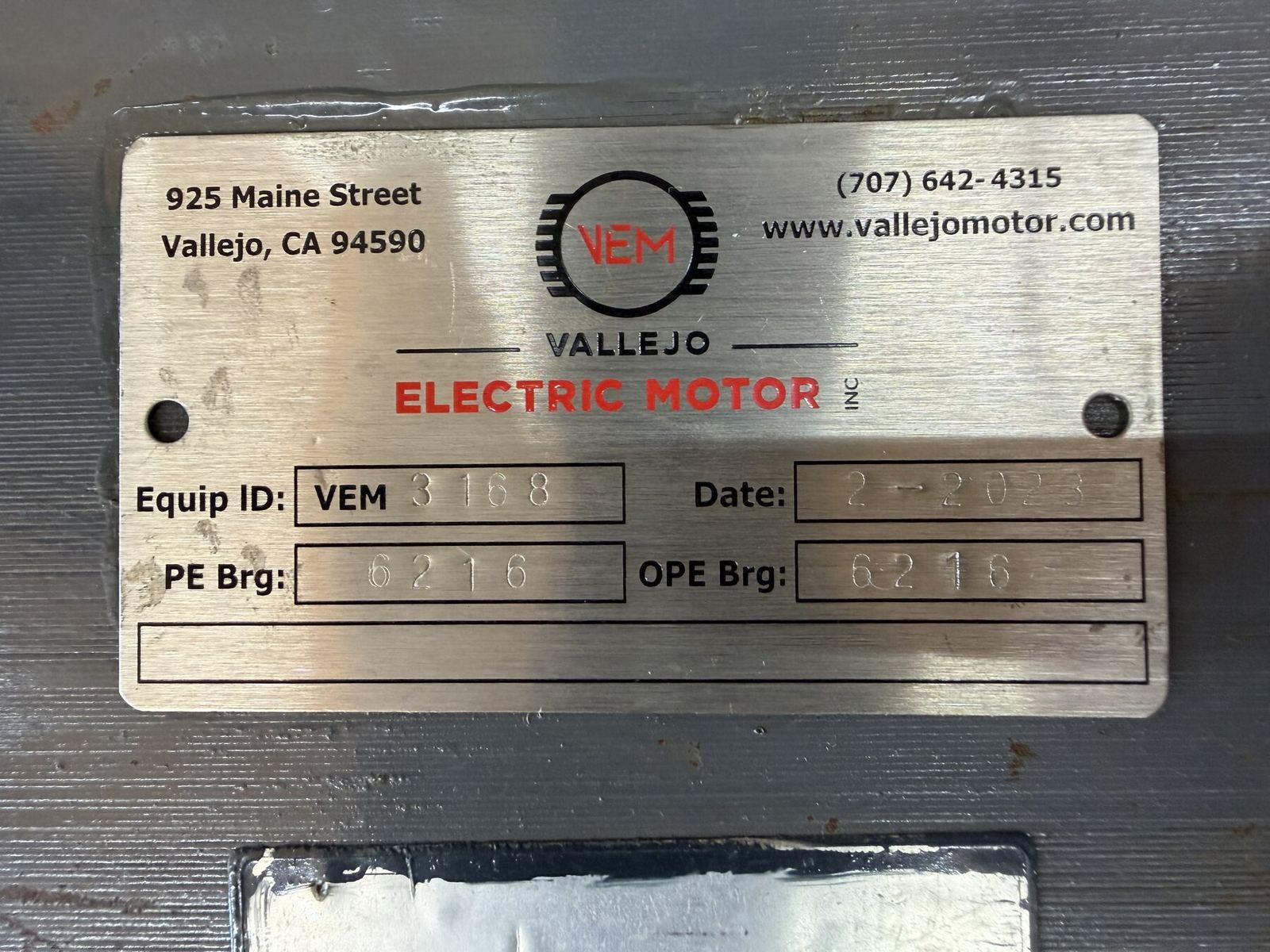

Vallejo Electric Motor stated that the motor was rebuilt, rewound and tested in February 2023 before being returned to its customer. Vallejo equipment ID VEM 3168; bearing entries 6216 and 6218. No formal shop report or test values are available, and subsequent service history is unknown.
Testing available
Additional motor-shop testing, including winding resistance, insulation resistance, encoder/feedback checks, cooling-circuit pressure testing or a compatible-drive run test, can be arranged at the prospective buyer's expense. Scope, facility and transportation must be agreed in advance. Unless specific results are documented on this page, the item remains untested by Copper Holler Surplus, LLC. No powered, destructive, pressure or load testing will be performed without advance agreement.
